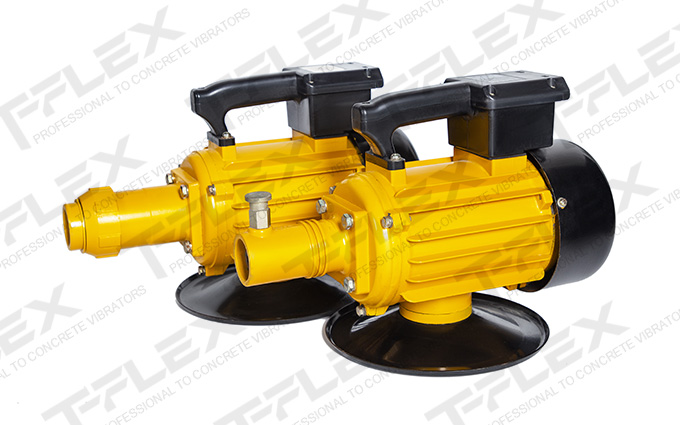

Single Phase Electric Motor, Concrete Vibrating Motor

The single-phase electric motor is compatible with ZN series, Japanese series and Russia series pendulum concrete vibrator, intended for compaction of concrete when it is placed in the monolithic structures with varying degrees of reinforcement, as well as in the manufacture of concrete and precast concrete products for construction.

inquiry

DETAILS

T-Flex could supply all adaptive power units of pendulum concrete vibrators to supply one-stop service of a supplying kit including vibrator poker and drive unit together. With our years of experience and quality control, our drive units could supply stable power performance and prolonged use life.

The pendulum concrete vibrator can be driven by both an electric motor and internal combustion engine. In order to meet different customer operation needs, T-Flex could supply single-phase electric motors, three-phase electric motors, gasoline engines and diesel engines.

Feature

1, The motor is special with light weight and easy carry.It also has a unique anti-reverse device with push button mode.

2, Easy to operate and high safety of poker concrete vibrator.

3, We can promise the nameplate power is consistent with the actual power.

4,100% cooper core enameled wire to ensure the long use life.

5, Good heat resistance performance.

parameters

Model	Power (KW)	Power (HP)	Voltage (V)	Voltage class(V)	Power frequency(HZ)	R.P.M
50-D	1.1	1.5	220~	220/230/240V	50/60	2850/3450
70-D	1.5	2
90-D	2.2	3
50-D II	1.1	1.5	110~	100/110/120/127V
70-D II	1.5	2
90-D II	2.2	3

These single-phase could match with Dynapac, Japanese, Turkey, Russia, Korean and ZN (Chinese) type of pendulum concrete vibrators. You could choose the one suit your needs from the table below.

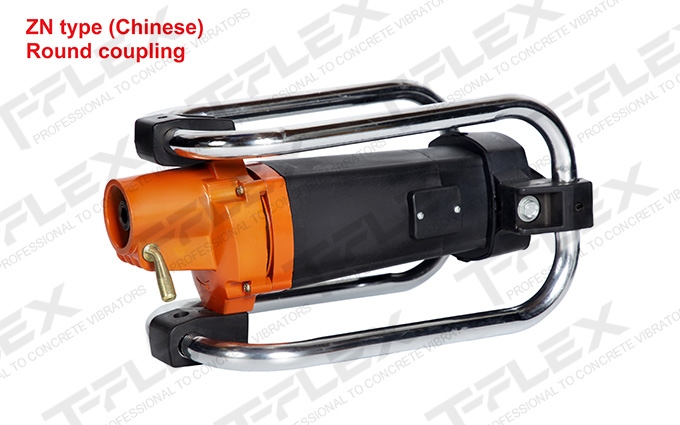

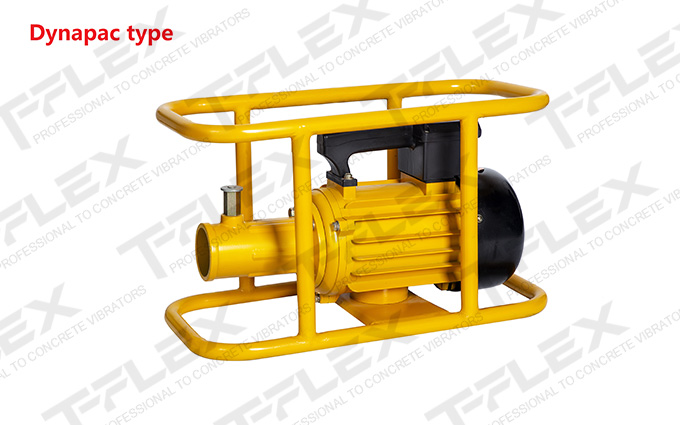

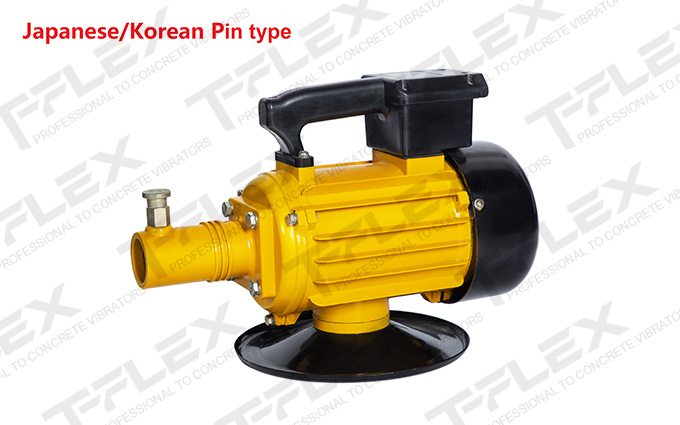

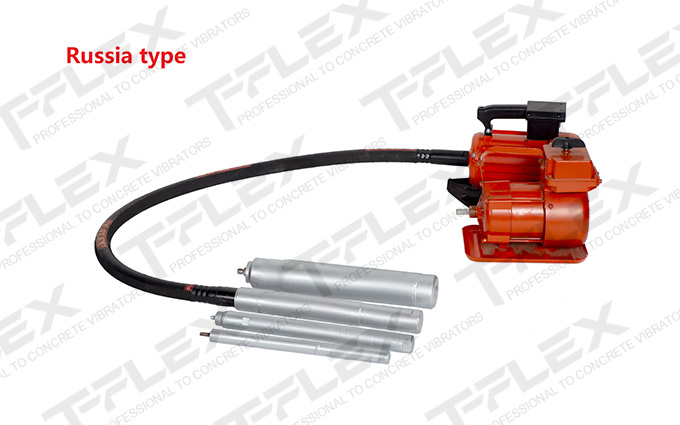

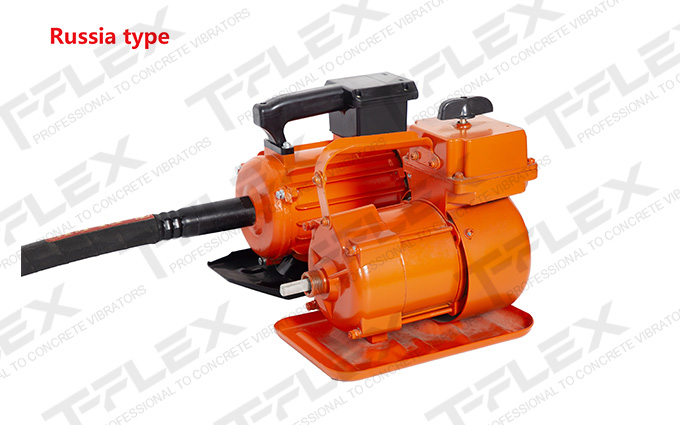

Model	ZN type (Chinese) Round coupling	ZN type (Chinese) Square coupling	Dynapac 2-claw type (Round groove)	Dynapac 2-claw type (Square groove)	Dynapac 3-claw type (Square groove)	Japanese ball type Hayashi (EXEN)	Korean pin type JEONIL	Turkey type	Russia type
50-D	ZN50-D	ZN50A-D	DF50-D	DF50A-D	DF50B-D	JF50-D	KF50-D	TF50-D	RF50-D
70-D	ZN70-D	ZN70A-D	DF70-D	DF70A-D	DF70B-D	JF70-D	KF70-D	TF70-D	RF70-D
90-D	ZN90-D	ZN90A-D	DF90-D	DF90A-D	DF90B-D	JF90-D	KF90-D	TF90-D	RF90-D
50-D II	ZN50-D II	ZN50A-D II	DF50-D II	DF50A-D II	DF50B-D II	JF50-D II	KF50-D II
70-D II	ZN70-D II	ZN70A-D II	DF70-D II	DF70A-D II	DF70B-D II	JF70-D II	KF70-D II
90-D II	ZN90-D II	ZN90A-D II	DF90-D II	DF90A-D II	DF90B-D II	JF90-D II	KF90-D II
