Frequency and Voltage Converters

Frequency and Voltage Converters

HF vibrators must be operated with electric or electronic converters that transform the standard 50/60 Hz frequency to 200 Hz. This conversion is essential to achieve the ideal vibration speed of 12,000 Ppm.
inquiry

DETAILS


    HF vibrators must be operated with electric or electronic converters that transform the standard 50/60 Hz frequency to 200 Hz. This conversion is essential to achieve the ideal vibration speed of 12,000 Ppm.


    No Overheating: Designed for continuous operation without thermal issues.

    Easy Maintenance: Simple design ensures minimal maintenance requirements.

    Long Life: Durable materials extend the lifespan of the vibrator head.

    100% Waterproof: Suitable for use in wet and harsh environments.

    Feature

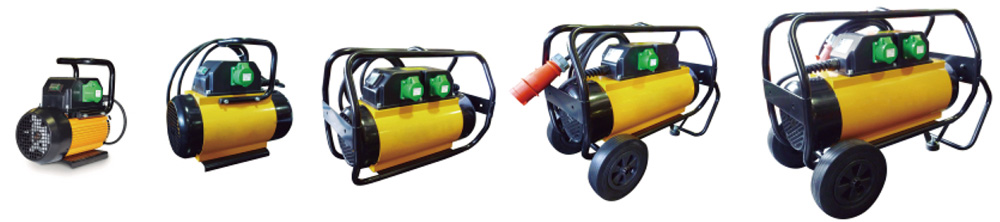

    PCM - FREQUENCY AND VOLTAGE CONVERTERS
    APPLICATION  Concrete compaction
    DESCRIPTION  Frequency and voltage converters equipped with permanent magnets, specifically designed to power high frequency concrete vibrators continuously
    FEATURES
    DUTY CYCLE  Continuous S1
    INSULATION CLASS  F (T° Max = 155 °C)
    PROTECTION  Overload protection
    WORKING TEMPERATURE  From -20 °C to +40 °C
    CONNECTION BOX Polyamide (nylon + 30% fibre glass), complete with switch and sockets (42V three phase, IP44 protection)
    SUPPLY CABLE  Neoprene electric cable HO7RN-F with plug
    DESIGN  Smooth and robust cast aluminium body
    Forced ventilation

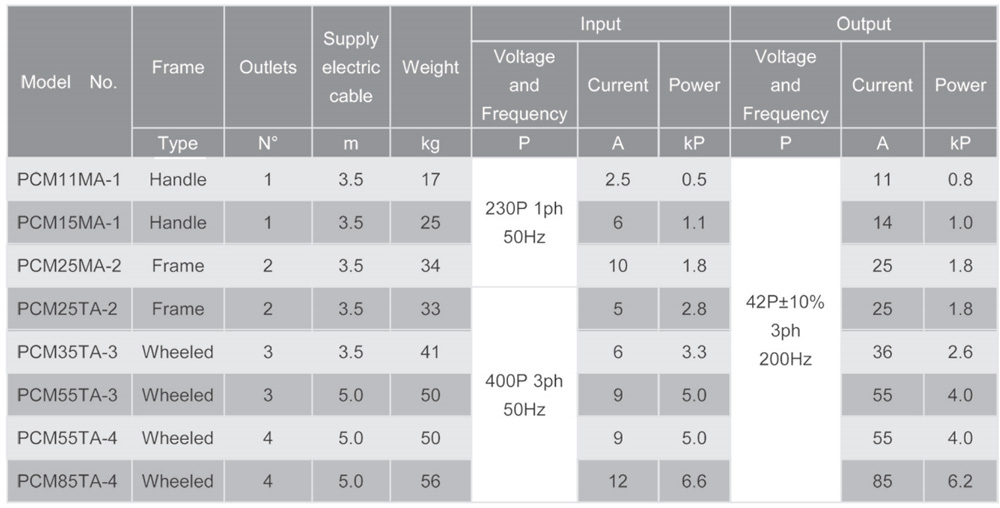

    parameters


    Compatibility Table

    Maximum number of vibrators that can be connected

    PCM 11MA

    1XPHN38A

    1XPHN50A

    --

    --

    --

    --

    PCM 15MA

    1XPHN38A

    1XPHN50A

    1XPHN59A

    --

    --

    --

    PCM 25MA

    2XPHN38A

    2XPHN50A

    2XPHN59A

    1XPHP50A

    1XPHP59A

    1XPHP65A

    PCM 25TA

    2XPHN38A

    2XPHN50A

    2XPHN59A

    1XPHP50A

    1XPHP59A

    1XPHP65A

    PCM 35TA

    3XPHN38A

    3XPHN50A

    3XPHN59A

    2XPHP50A

    2XPHP59A

    1XPHP65A

    PCM 55TA

    3XPHN38A

    3XPHN50A

    3XPHN59A

    3XPHP50A

    3XPHP59A

    2XPHP65A

    PCM 85TA

    4XPHN38A

    4XPHN50A

    4XPHN59A

    4XPHP50A

    4XPHP59A

    3XPHP65A
