Concrete Vibrator Used Flexshaft Inner Core

Concrete Vibrator Used Flexshaft Inner Core

Our flexible shafts are used in a range of construction tools, especially concrete vibrators, which rely on flexible shafts to deliver torque to the vibrating head inside a concrete form.
inquiry

DETAILS

  • Concrete Vibrator Used Flexshaft Inner Core

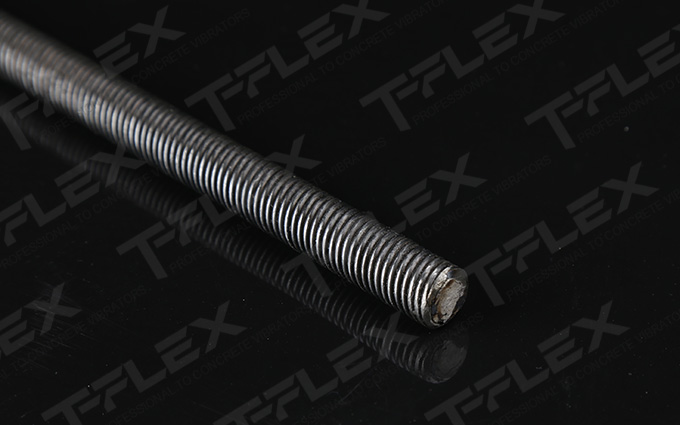

  • Concrete Vibrator Used Flexshaft Inner Core

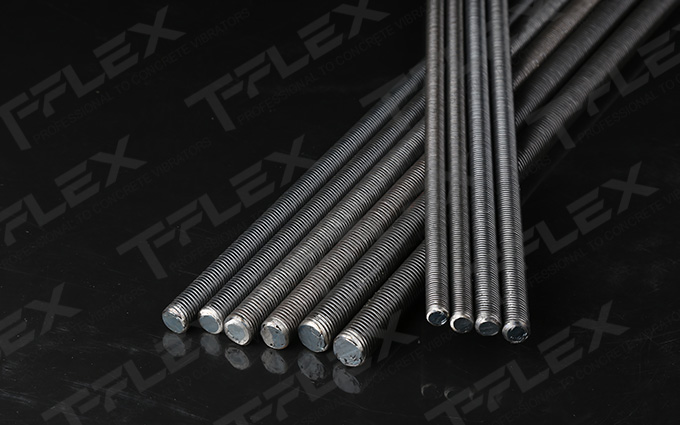

  • Concrete Vibrator Used Flexshaft Inner Core

Normally, these flexible shafts have a median core diameter of 0.250 to 0.625 inches (6.35mm to 16mm), with a carbon steel core. The core rotates within the casing, and is constructed using multiple layers of helically wound wires.

Advantage

Efficient torque transfer

With the rational design, our flexible shaft can transfer sufficient torque from engine to the concrete vibrator head.


Durable work performance

With the special technology during heat treatment, our flexible shaft is wear and fatigue resistance


High Flexibility

Our flexible shaft has good flexibility which helps the flexible shaft match the rubber hose completely.


Meet customized demand

We can provide the assembly needed couplings for customers’ easy use. Our engineers are willing to make the design according to customer demand.


Large production capacity guarantee stable quality and timely delivery

Over 1-million-meter production capacity each month shows that flex shaft produced by the most experienced team in China, to ensure stable quality and timely delivery.

parameters

Here below is the normal flexible shaft sizes used on concrete vibrators:


Shaft Dia.(Φ)

Material

Length

Ref. Bending Dia(mm)

Ref. Destroy Torque(N.m)

7.5(high speed)

70# carbon steel

0.5m~15m could be customized

160-200

19-22

8

70# carbon steel

260-310

35-39

9

70# carbon steel

220-260

45-50

9.15(high speed)

70# carbon steel

330-370

50-55

9.5(high speed)

70# carbon steel

330-370

50-55

10

70# carbon steel

230-270

55-60

10(high speed)

70# carbon steel

330-370

55-60

11

70# carbon steel

230-270

60-65

12

70# carbon steel

240-280

65-70

13

70# carbon steel

250-290

70-100
